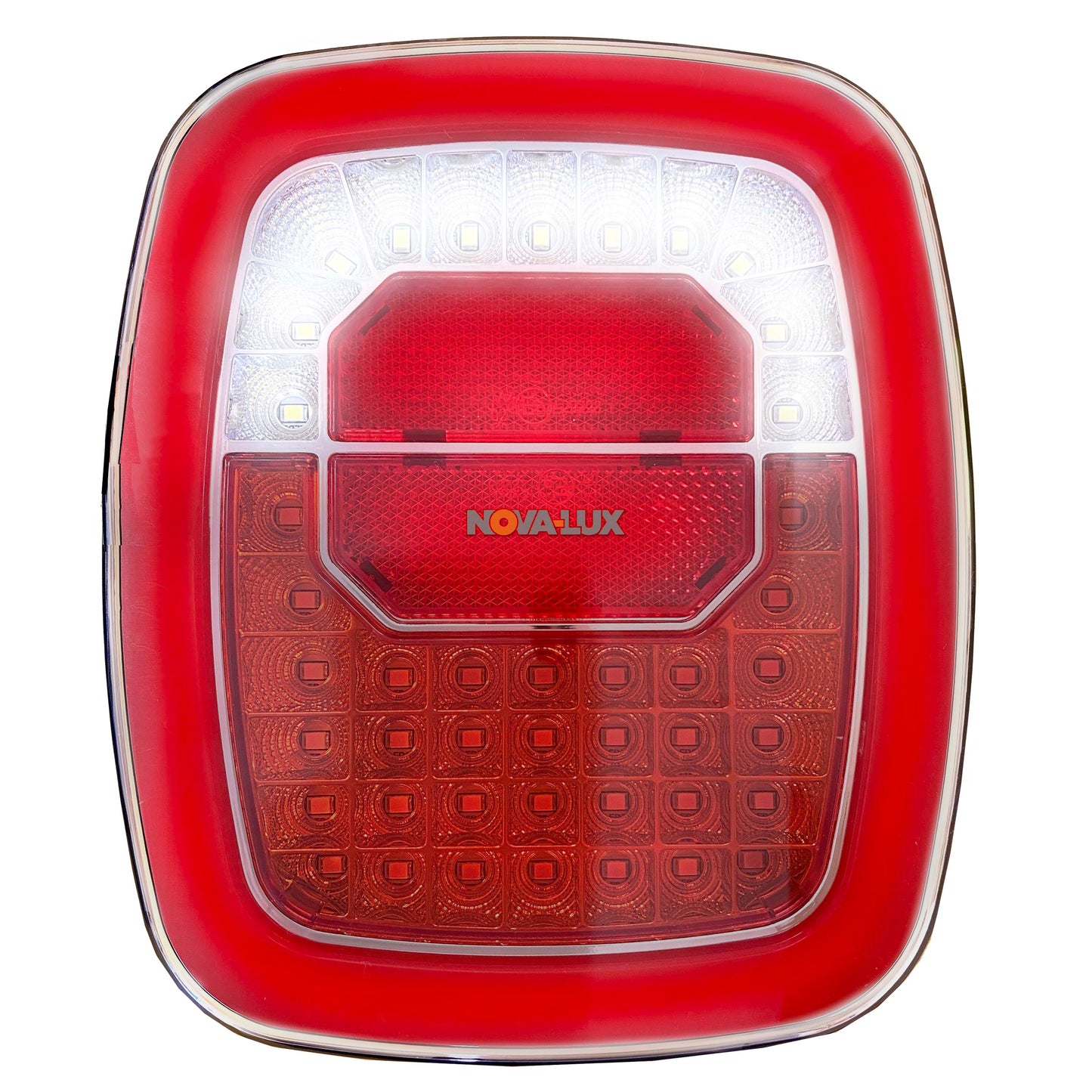

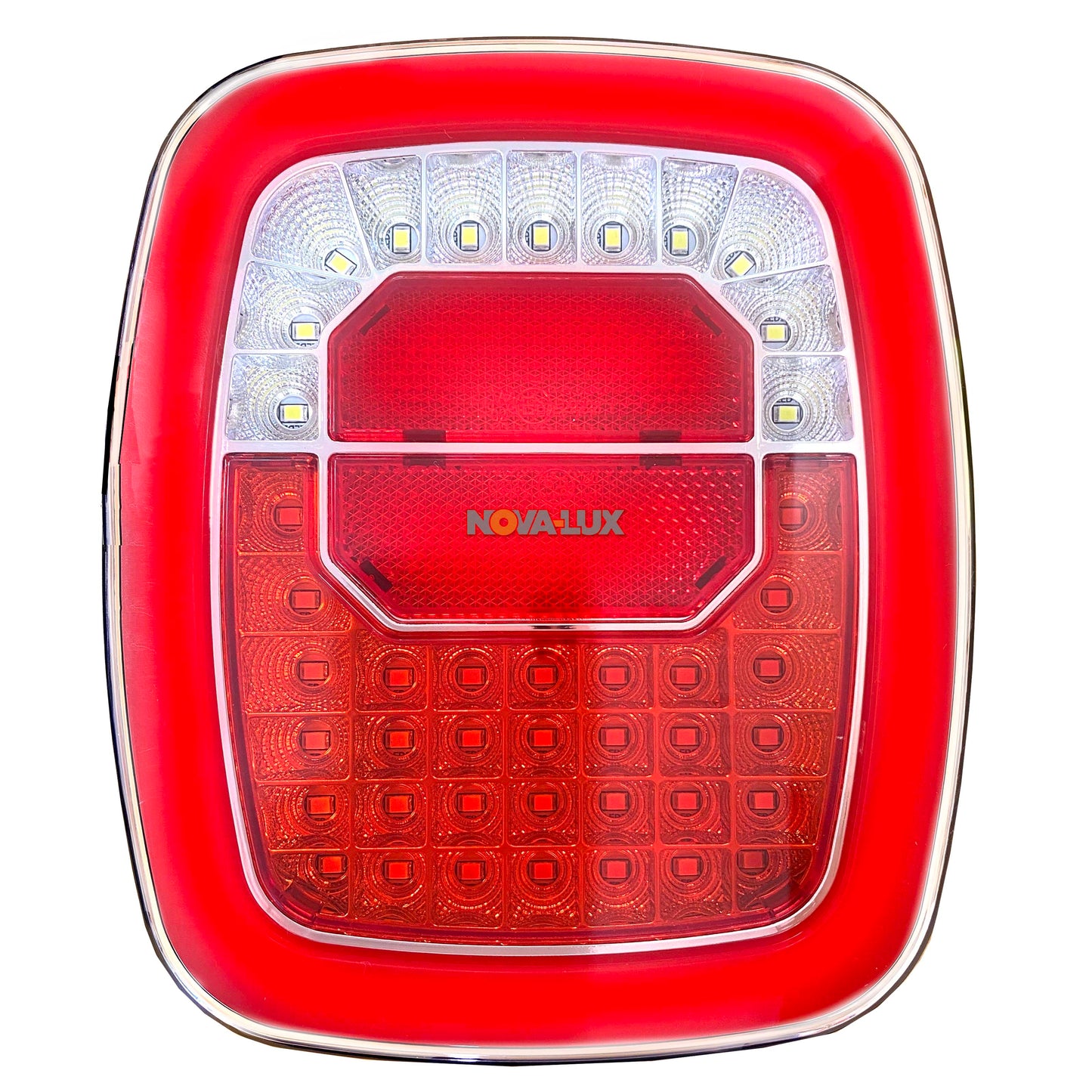

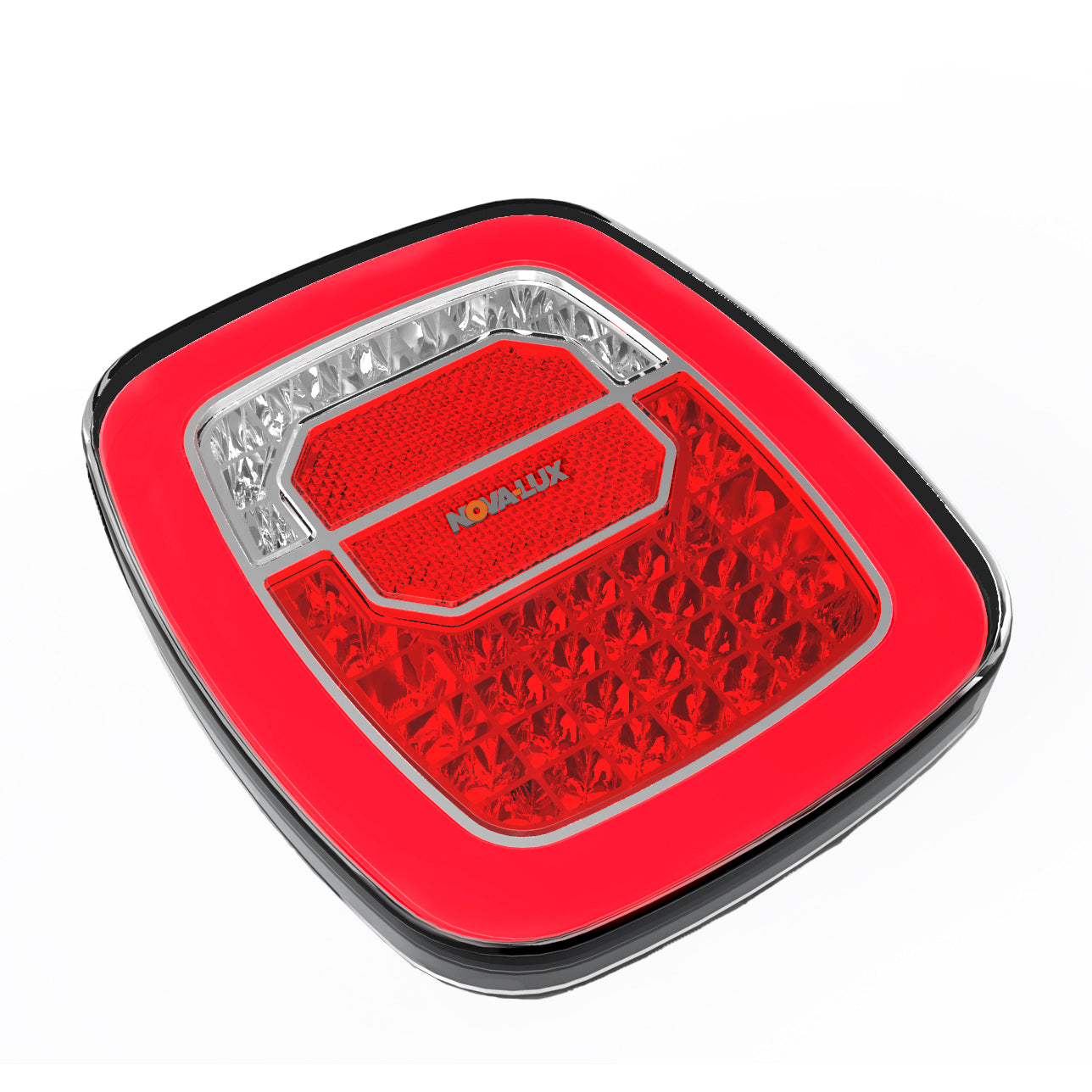

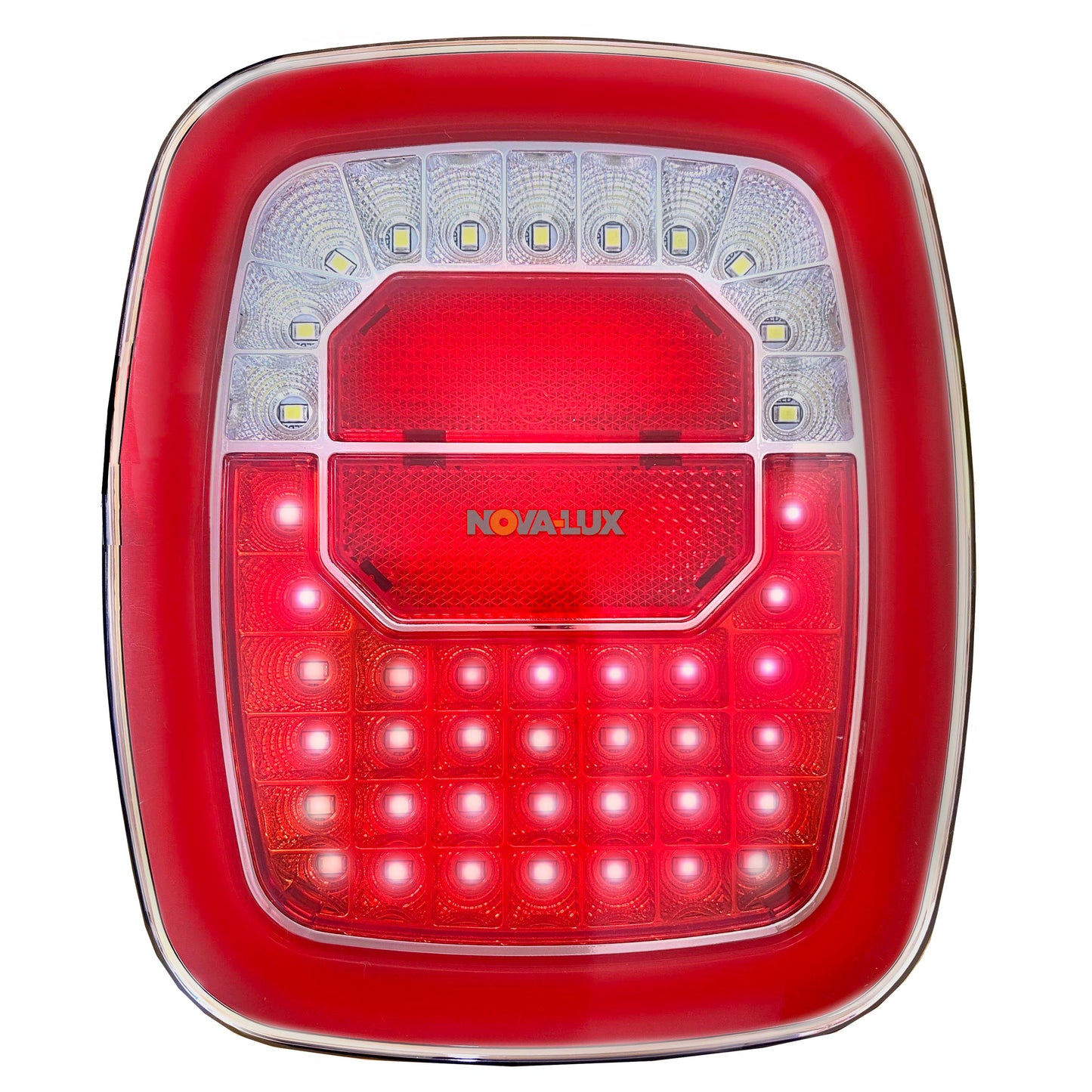

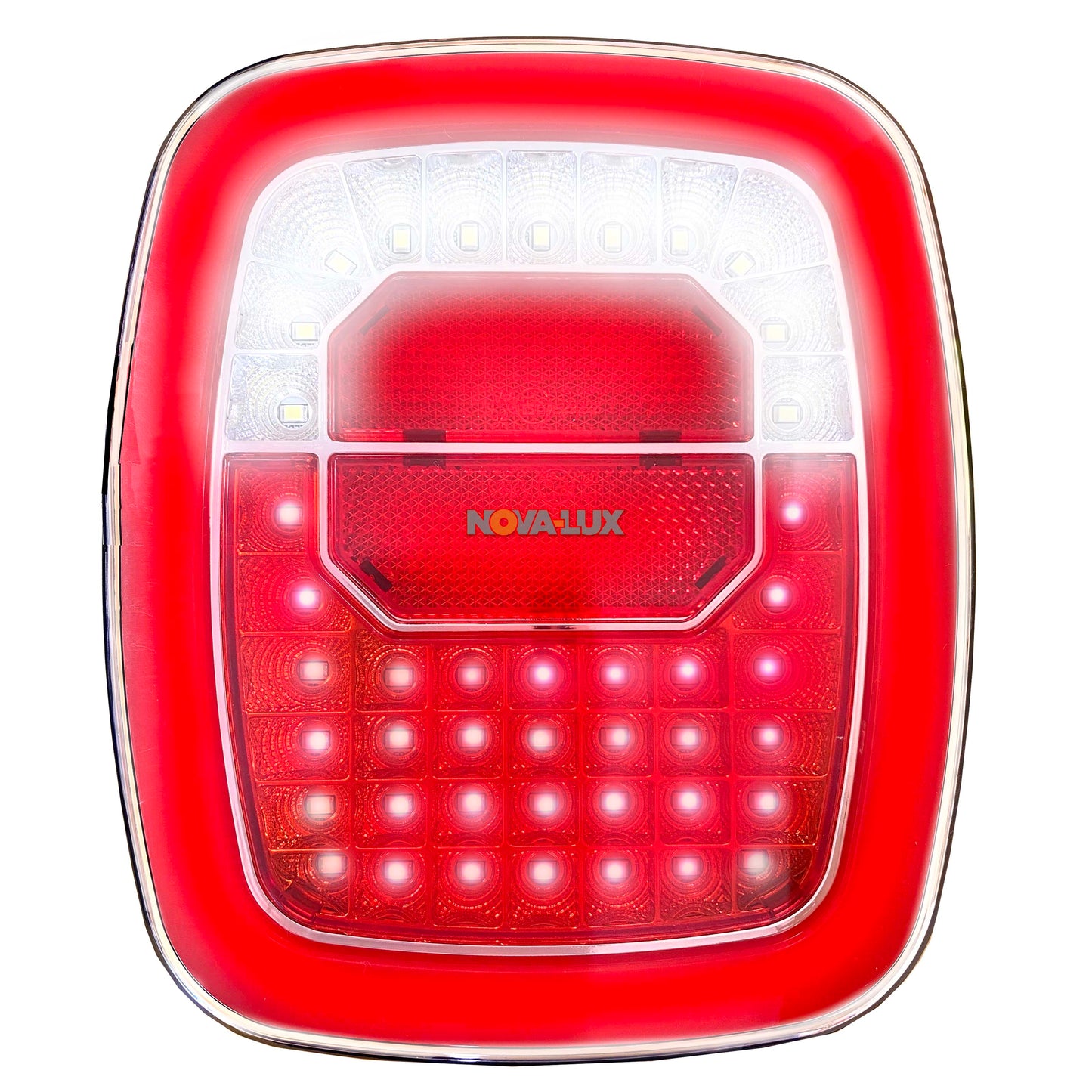

This universal slim surface mount brake box light combines multiple functions into one compact unit. It serves as a stop, tail, turn, and reverse light, making it a versatile choice for any vehicle. The surround glow light features marker, brake, and turn signal LED functions, while the center section is equipped with 32 LEDs for marker, brake, and turn signals. The reverse function is powered by 11 super bright white LEDs. Designed for easy installation with a rear 2-bolt mount and a hardwired 4-wire connection.
Key Features:
All-in-One Functionality: Combines stop, tail, turn, and reverse functions in a single light.
High-Intensity LEDs: Equipped with 80 red LEDs and 11 white LEDs for maximum visibility.
Slim Style Design: Surface mount with a slim profile, installed via 2 bolts with included flange nuts.
Durable Construction: ABS black housing with a polycarbonate clear lens for long-lasting durability.
IP67 Certified: Waterproof and dustproof, suitable for all weather conditions.
Specifications:
Functions: Stop, tail, turn, and reverse
LED Count: 80 red LEDs, 11 white LEDs
Voltage: 12-24V
Wattage: Tail light: 1W, Brake: 8.5W, Reverse: 1.7W
Operating Temperature: -40°C to 65°C

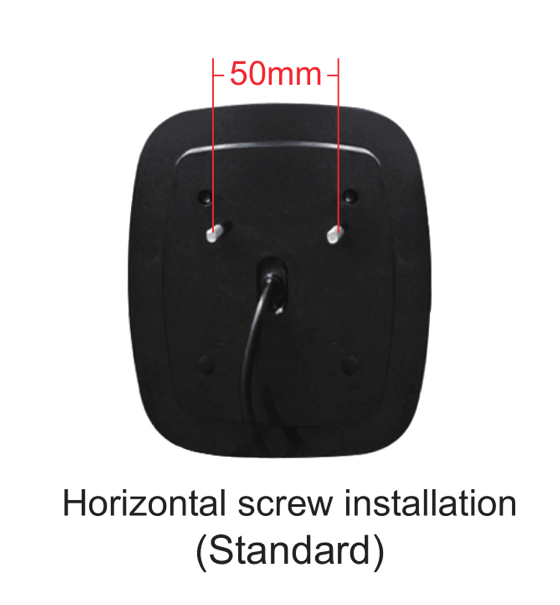

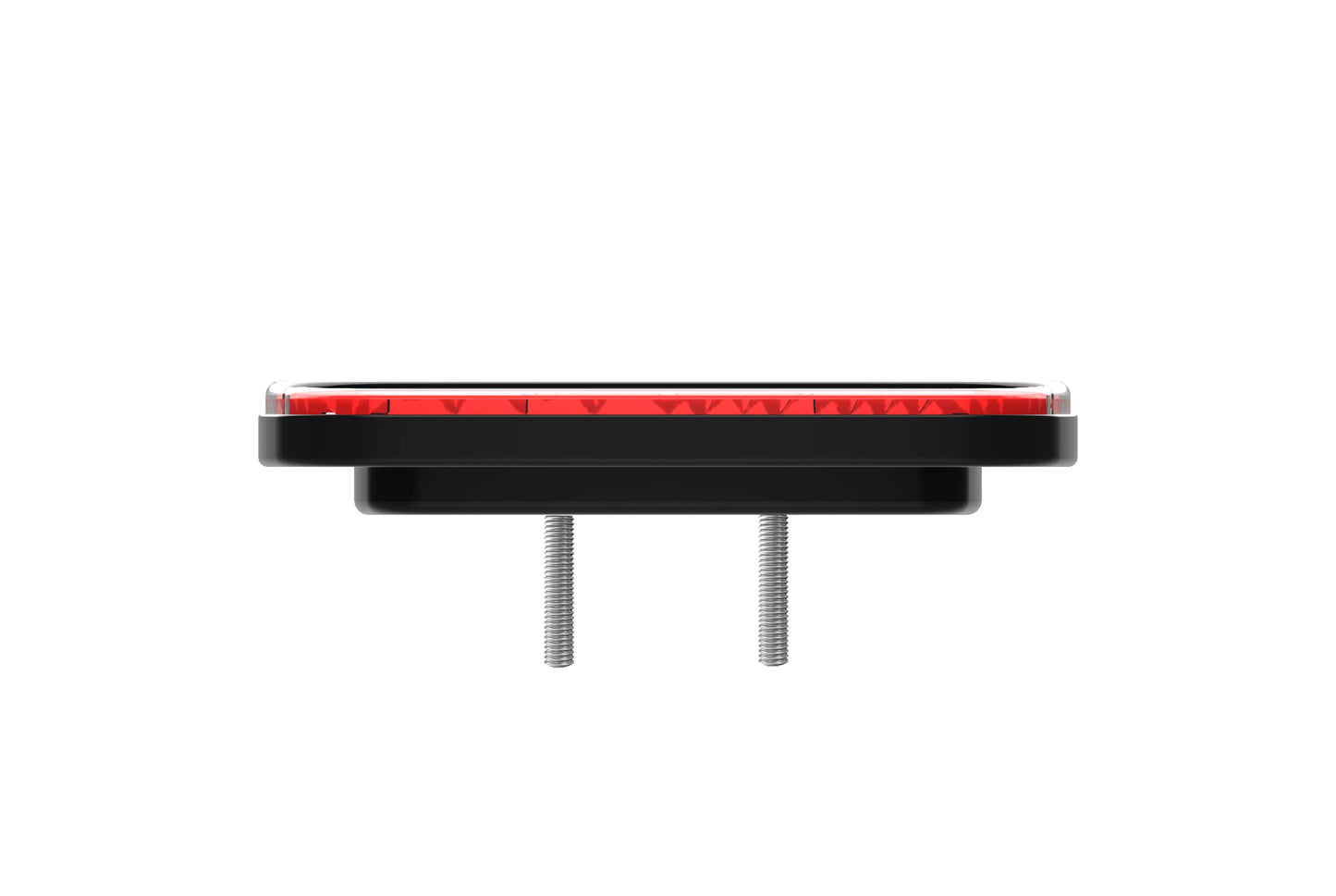

Mounting: Slim style surface mount via 2 bolts, includes 2 flange nuts
Housing: ABS black, Lens: Polycarbonate clear lens
Wiring: 4 wires (White = Ground, Brown = Marker, Blue = Brake & turn, Purple = Reverse)
This slim surface mount brake box light offers a comprehensive lighting solution for your vehicle, combining multiple functions into a sleek and durable design.
Contact us to purchase this universal slim surface mount brake box light and upgrade your vehicle’s lighting today!
